Con Affetto

Principle: 3- way Bassreflex, optimised damping
Recommended installation: stereo base distance between 2- 3
Metres, 5-10° angled to innerside, optimised up to 0,3- 1Metre
from side walls and 0,30 - 1Metre from rear wall, to save the
excellent deepness- staggering of the speaker.
Quantity and type of chassis:
1 woofer: 195 mm, cone
1 midrange system: 130 mm, cone
1 tweeter: 25 mm, low mass fabric dome
Cross- over network: Filter 2.Order/ Butterworth
Split- frequencies: 180 Hz / 2.500 Hz.
Cross- volume: 75 Litres
Tuning-Frequency: 34,5 Hz

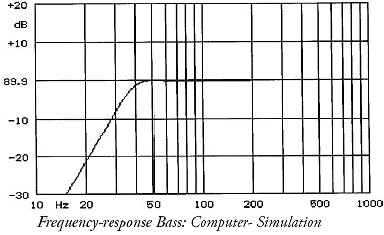

Frequency range: 29 - 30.000 Hz DIN 45 500
Frequency response: (-3 dB) 34 Hz - 27.000 Hz
Power handling nominal/ music: 80 Watt (IEC 268- 5)
Peak power handling: 120 Watt
Sensitivity: 90 dB/1Watt/1Metre
Recommended power amplifier handling: up to 150 W/Sin. by
linear tone control and ½ rms./ power
Nominal impedance:
(amplifiers with 2/4/8 Ohms stability are optimised)
Dimensions:
(W x H x D) 252 x 1016 x 368 mm, socket board
(W x D) 307 x 415 mm
Net- weight: 28,15 kgs
Warranty: 5 years for first owner
Available veneers:
about 160 + colouring versions, ask your dealer for details.
